M Plan APO SL Objectives for Metallurgical microscope 2X, 5X, 10X, 20X, 50X, 100X,Visible,NIR,NUV
Description
¡¤ High Quality Optics in a Plan Apochromat Design
¡¤ Long Working Distance Options
¡¤ Sub-Micron Resolving Power
¡¤ Works with all Mitutoyo parts and can be placed directly in a system currently utilizing Mitutoyo objectives.
These objectives are made to the highest quality and standards, utilizing a strain-free optical system. They maintain a long working distance and offer high numerical apertures. With resolving power from 5 to 0.34 microns, these objectives work for a wide array of applications. All stated magnifications are based on a tube lens focal length of 200mm. Mounting thread is 26mm x 0.706mm pitch (36 TPI).

M Plan APO SL Objectives for Metallurgical microscope
Name (objectives)
Magnification
Numerical aperture(N.A)
Working distance (mm)
Conjugate distance(mm)
Parfocalization
distance(mm)
Infinity M Plan APO SL Objective (Visible)

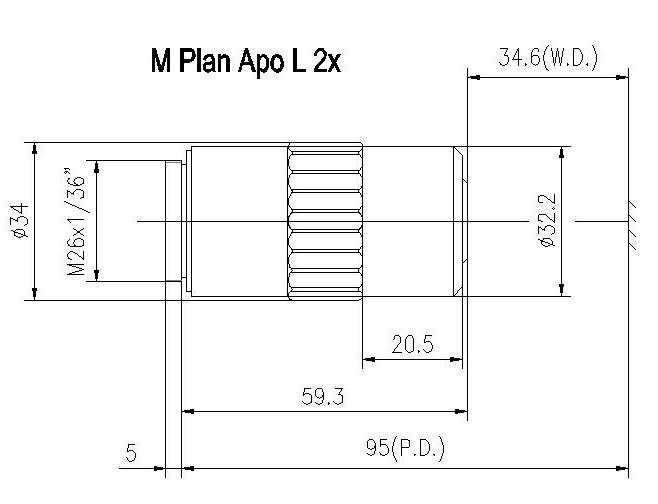

2X
0.055
34.60

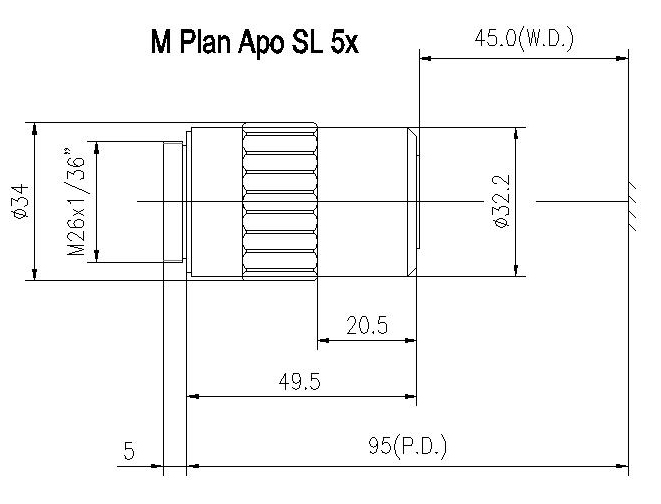

5X
0.14
44.50
¡Þ
f T=200
95

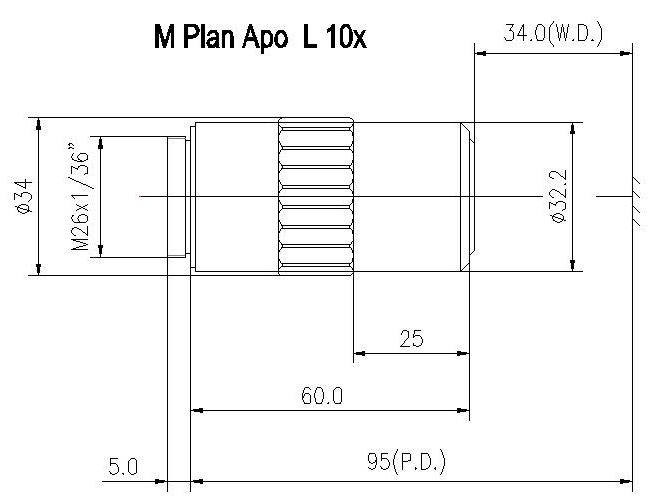

10X
0.28
34.00

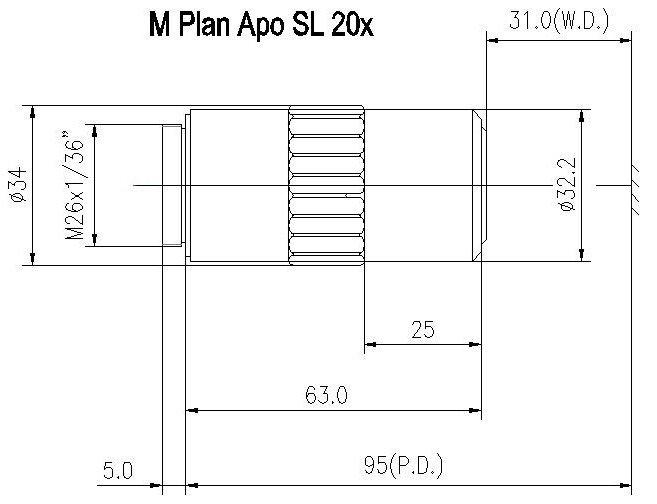

20X
0.29
31.00
50X
0.42
20.50
100X
0.55
12.50
Infinity M Plan APO SL Objective (NIR)
10X
0.28
34.00
¡Þ
f T=200
95
20X
0.29
31.00
50X
0.42
20.50
Infinity M Plan APO HL Objective (NUV)
20X
0.40
17.15
¡Þ
f T=200
95
50X
0.43
14.81
50X
0.70
3.50
