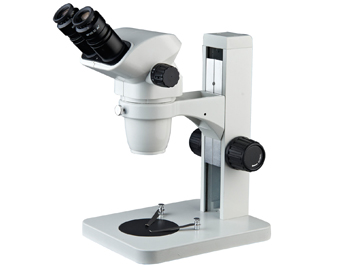

| Zoom6745 Stereo Microscope |
 |
| Description |
|
 |
 |
|
Zoom6745-B |
Zoom6745-C |
 |
 |
|
Zoom6745-D |
Zoom6745-E |
Specification: |
|
Zoom6745 series zoom stereo microscope , fully coated optial system sharp and clear images with extremely good flatness and contrast. It is characterized by brand-new optical design, the best reprduction and true color image. With their large zoom rang and long-working distance. These are ideal for high-magnification, high-resolution observation in biological research , precision-oriented semi-conductor and other industries.
Configuration:Vertical sector base with reflected and transmitted LED illumination
Auxiliary lens: 0.5X/165mm. 2X/30mm.
Main Spec.
|
Binocular&Trinocular Head Angle of viewing |
45º |
|
Zoom ratio |
1:6.7 |
|
Eyepiece |
WF10X/22mm Diopter Adjustment Eyepiece |
|
Objective |
0.67x-4.5x |
|
Magnification |
6.7x-45x |
|
Interpupillary distance adjustment range |
54-75mm |
|
Working distance |
105mm |
|
Illumination |
Reflected and transmitted LED illumination ,Independent switch , adjustable brightness ,Low-voltage security,small power consumption, low heat,long life |
|
vertical Size |
300mm |
|
Focus diatance |
100mm |
|
Drawtube Size: |
¦Õ76mm |
|
Base Size |
285x238mm |
Optical Data:
| Objective |
0.3X |
0.4X |
0.5X |
0.75X |
1X |
1.5X |
2X |
| Working Distance |
287mm |
217mm |
177mm |
117mm |
105mm |
47mm |
26mm |
|
10X |
Magnification |
2.0x-13.5x |
2.7x-18.0x |
3.4x-22.5x |
5.0x-33.8x |
6.7x-45.0x |
10.1x-67.5x |
13.4x-90.0x |
| View Field (mm) |
109.5-16.3 |
82.1-12.2 |
65.7-9.8 |
43.8-6.5 |
32.8-4.9 |
21.9-3.3 |
16.4-2.4 |
|
15X |
Magnification |
3.0x-20.3x |
4.0x-27.0x |
5.0x-33.8x |
7.5x-50.6x |
10.1x-67.5x |
15.1x-101.3x |
20.1x-135x |
| View Field (mm) |
79.6-11.9 |
59.7-8.9 |
47.8-7.1 |
31.8-4.7 |
23.9-3.6 |
15.9-2.4 |
11.9-1.8 |
|
20X |
Magnification |
4.0x-27.0x |
5.4x-36.0x |
6.7x-45.0x |
10.1x-67.5x |
13.4x-90.0x |
20.1x-135.0x |
26.8x-180x |
| View Field (mm) |
59.7-8.9x |
44.8-6.7 |
35.8-5.3 |
23.9-3.6 |
17.9-2.7 |
11.9-1.8 |
9-1.3 |
|
25X |
Magnification |
5.0x-33.8x |
6.7x-45.0x |
8.4x-56.3x |
12.6x-84.4x |
16.8x-112.5x |
25.1x-168.8x |
33.5x-225x |
| View Field (mm) |
44.8-6.7 |
33.6-5.0 |
26.9-4.0 |
17.9-2.7 |
13.4-2.0 |
9.0-1.3 |
6.7-1.0 |
|
30X |
Magnification |
6x-40.5x |
8x-54x |
10x-67.5x |
15x-101x |
20x-135x |
30x-202x |
40x-270x |
| View Field (mm) |
34.8x-5.1 |
26.1-3.87 |
20.9-3.1 |
13.9-2.1 |
10.4-1.55 |
6.9-1 |
5.2-7.5 |
Optional Accessories •Eyepieces: 15x, 20x and 25x •Auxiliary Objectives: 0.3x, 0.4x, 0.5x, 0.75x, 1x, 1.5x and 2x •LED Ring Lights •Fiber Optic Illuminators •Digital, HD and Video Cameras •Fluorescent Ring Lights •Microscope carry case | |
|
|
