| ·Long working distance objective lens with an infinite
conjugate focal distance of 95mm
·Chromatic aberration correction in the visible spectrum,
suitable for coaxial observation and laser processing
·Suitable for laser processing at 532nm, 1030-1064nm
·Corresponding cover glass thicknesses are t=0, t=0.7,
t=1.1, which can be achieved by replacing the
appropriate protective lens holdert
|
Name |
UPC Code |
Numerical Aperture |
Working Distance(mm) |
Focal Length |
Resolution |
Depth of Field |
Actual Field of View(mm) |
Weight |
|
NA |
WD(mm) |
f(mm) |
R(um) |
±D.F(um) |
Φ24 eyepiece |
1camera |
(9) |
|
LCD |
Plan |
Apo |
NIR |

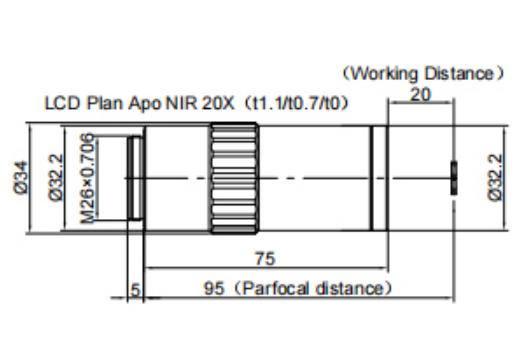

20X(t0) |
0310-9020-1000 |
0.4 |
20 |
10 |
0.7 |
1.7 |
1.2 |
0.48X0.64 |
260 |
|
LCD |
Plan |
Apo |
NIR |
20X(t0.7) |
0310-9020-1070 |
0.4 |
20 |
10 |
0.7 |
1.7 |
1.2 |
0.48X0.64 |
259 |
|
LCD |
Plan |
Apo |
NIR |
20X(t1.1) |
0310-9020-1110 |
0.4 |
20 |
10 |
0.7 |
1.7 |
1.2 |
0.48X0.64 |
258 |
|
LCD |
Plan |
Apo |
NIR |

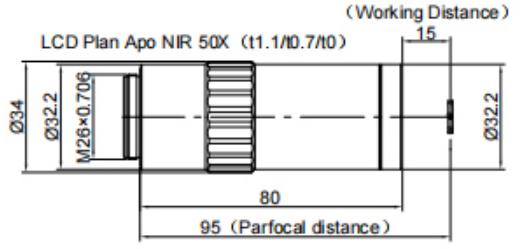

50X(t0) |
0310-9050-1000 |
0.45 |
15 |
4 |
0.6 |
1.4 |
0.48 |
0.19X0.26 |
300 |
|
LCD |
Plan |
Apo |
NIR |
50X(t0.7) |
0310-9050-1070 |
0.45 |
15 |
4 |
0.6 |
1.4 |
0.48 |
0.19X0.26 |
299 |
|
LCD |
Plan |
Apo |
NIR |
50X(t1.1) |
0310-9050-1110 |
0.45 |
15 |
4 |
0.6 |
1.4 |
0.48 |
0.19X0.26 |
298 |
The resolution and the objective lens depth of field are values calculated based on the reference wavelength λ=550nm.
|
