Stereo Microscopes >> Parallel Optical Stereo

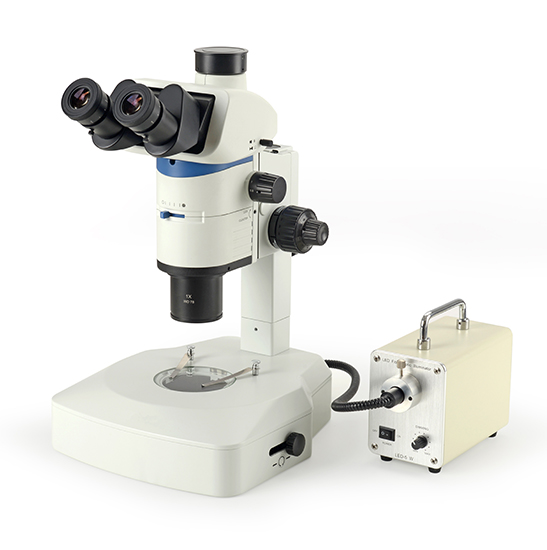

Zoom6380 Research Grade Zoom Stereo Microscope
Description



Description

 The new Zoom6380 series Zoom Stereo Microscope offers best-in-class performance and value for industrial and life science applications.

 The Galilean optics design and apochromatically corrected objectives deliver crisp, high-resolution images at all magnifications.

 With a 12.5:1 zoom range and several stand and illumination options, the Zoom6380 can be configured to meet the demands of both industrial and life science applications.






Specification

Item

Technical Specifications

Zoom

6380

Optical System

Galilean optical system. Variable zoom magnification system with parallel optical axis; zoom drive system: horizontal handle. Apochromatically corrected common main objective. Click-stops for various zoom positions incorporated – manual, user can turn this feature on or off

Viewing Head

Tilting trinocular viewing head, 5-45 degree adjustable; binocular: trinocular= 100:0 or 0:100; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw

30-degree inclined trinocular head; fixed light distribution, binocular: trinocular=50: 50; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw

Eyepiece

High eye-point wide field plan eyepiece PL10×/22mm, diopter adjustable

High eye-point wide field plan eyepiece PL15×/16mm, diopter adjustable

High eye-point wide field plan eyepiece PL20×/12mm, diopter adjustable

Zoom Range

Zoom range: 0.63X-8X, click stop for 0.63×, 0.8×, 1×, 1.25×, 1.6×, 2×, 2.5×, 3.2×, 4×, 5×, 6.3×, 8×, with built-in aperture diaphragm

Objective

Plan Apochromatic Objective 1×, W.D.: 80mm

Plan Apochromatic Objective 2×, W.D.: 20mm

Zoom Ratio

1: 12.5

Nosepiece

Nosepiece for 2 objectives

Focusing Unit

Coarse and fine coaxial focus system, integrated body with focus holder, coarse range: 50mm, fine precision 0.002mm

Coaxial Illumination

Intermediate magnification 1.5x, with 1/4λ glass slide, can be rotated 360 degrees, 20W LED cold light source power box, with brightness adjustment knob, flexible dual optical fiber, length 1 meter

Base

Ultra-thin base, multiple LEDs (total power 5W), base with color temperature display and brightness display (color temperature range: 3000-5600K)

Plan base with transmitted illumination (work with external 5W LED fiber); built-in 360 degree rotatable mirror, location and angle adjustable

Illumination

5W LED light box (size: 270×100×130mm) with single fiber (500mm), color temperature 5000-5500K; operating voltage 100-240VAC/50-60Hz, output 12V

LED Ring light (200pcs LED lamps)



Optical Parameters

Main Objective

W.D.

(mm)

Resolution

(lp/mm)

N.A.

(mm)

EYEPIECE



10X/23mm

15X/16mm

20X/12mm

1x

115

300

0.1

Total Magnification

8-50X

12-75X

16-100X

Field of View (mm)

27.5-4.4

20.0-3.2

15.6-2.5

2X

43.5

600

0.2

Total Magnification

16-100X

24-150X

32-200X

Field of View (mm)

13.8-2.2

10.0-1.6

7.8-1-3
