Stereo Microscopes >> Parallel Optical Stereo

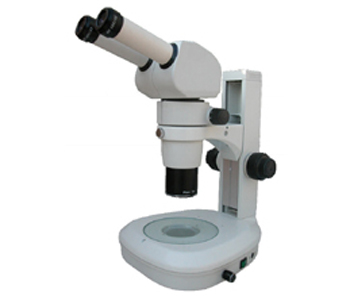

ZOOM1020 Parallel Optical System Zoom Stereo Microscope
Description

ZOOM1020  Most Advanced Stereomicroscope
The advance ZOOM1020 incorporates a powerful combination of advanced optical and ergonomic capabiliy.
With high NA objectives the ZOOM1020 can handle some of the same advanced image techniques that compound instrument users have long enjoyed.

The ZOOM1020 with 0.8X~8X zoom magnification, inclination angles of 20¡ã respectively. It can be with 1X Plan achromatic auxilary lens and 0.5X achromatic auxilary lens. With the good quality parallel optical system.


Specification

ZOOM1020

Microscope Body-Standard

Optical System

Parallel Optical System

Head Observation

Binocular, 20¡ã inclined

Trinocular intermedial Tube

Interpupillary Adjustment

52~75mm

Zoom ratio

1:10

Magnification Range

0.8X~8X

Auxiliary Objective

Plan 1X

Working Distance

78mm

Eyepiece

WF10X/F.N.22

Field of View

25.7~8.8mm

Microscope Body¡ª¡ªOptional

Magnification Range

4X~240X

Beam Splitter

With Standard Adapter / Split 40/60

Auxiliary Objectives

0.5X, WD=123mm

Working Distance

78~123mm

Eyepiece

WF15X/F.N.16, WF20X/F.N.12.5

Field of View

0.9~55mm

Accessories¡ª¡ªOptional

Illumination

Fluorescent Right light, Cold Light Source Series

Digital Cameral

DCM, MDC series

 Adapter (Trinocular)

CCD Adapter Series

Pack:
Head: 1 carton, G.W.: 3KGS, Meas.: 33*28*15CM
Stand:1 carton, G.W.: 7KGS (with LED)  6KGS (without LED), Meas.: 36*30*40CM
