MP490 Polarizing Microscope with transmitted illumination
Description

Items

Specification

MP490

Eyepiece

WF 1-18mm

WF 10×-18mm (Reticule 0.1mm)

Non-stress
Infinity
Plan Objective

4×

10×

20× (S)

40× (S)

60× (S)

Seidentopf Binocular Head

Inclined 30°, Rotatable 360°,
Interpupilary Distance:  50-75mm.

Seidentopf Trinocular Head

Inclined 30°, Rotatable 360°,
Interpupilary Distance:  50-75mm.
Light Distribution
 20:80

Nosepiece

Quadplex, Center adjustable

Analyzer Unit

0-90°,It can be moved out of the optical path for single polarizing observe.

Bertrand Lens

It can be moved out of the optical path.

λ Slip

First Class Red

1/4λSlip


Quartz Wedge

(Ⅰ-Ⅳ Class)

Revolving Round Stage

Rotatable 360°, Division 1°, Vernier division 6’can be locked.

Polarizing Attached Mechanical Stage

Condenser

Abbe N.A. 1.25      Non-stress

Polarizing Unit

It can be moved out of the optical path.

Illumination

6V/20W Halogen Lamp

6V/30W Halogen Lamp

3W-LED Lamp

Filter

Blue(Built in)

Amber

Green

Neutral

C-mount

1×,0.47×Focus adjustable

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

Packing Size: 570mm×275mm×450mm     Gross Weight: 8.6 kgs     Net Weight: 7.5 kgs

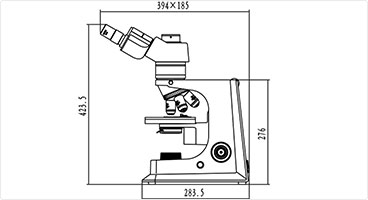

Polarizing Microscope Size(mm )
