Microscopy Cameras >> HDMI Cameras
HD1 1080P HDMI Microscope Camera
Description

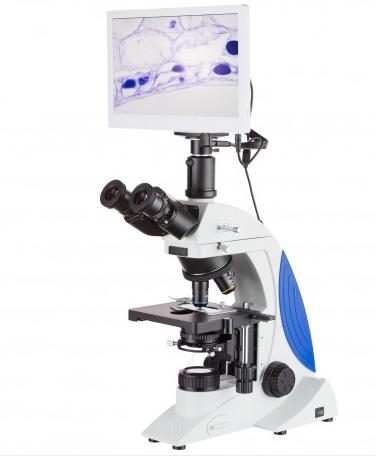

This is our 1080p digital video camera and 11.5" monitor. Everything you need to mount the camera and monitor is included, so you can conveniently view your microscope¡¯s image without any external device necessary!

 1920x1080 @ 15fps via HDMI and USB2.0

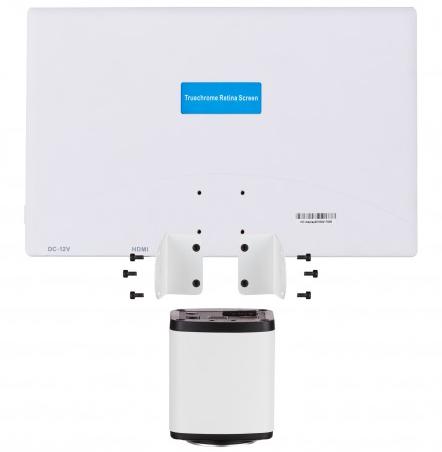

 Includes mounting hardware and HDMI cable
 Includes USB mouse for on-screen controls

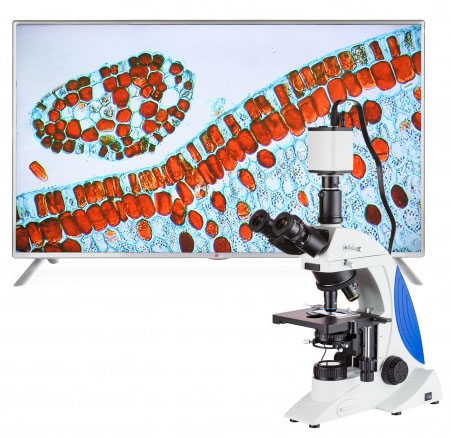

Our brand new 1920x1080, 15fps camera kit with 11.5" monitor allows for live viewing and recording of your microscope image with ease. Record to an SD card or computer via USB 2.0. Now, viewing your microscope¡¯s image digitally has never been easier; simply connect the camera to the monitor, or any HDMI display, and attach a USB mouse, and you¡¯re up and running with crystal clear images. On-screen adjustments can be easily made for exposure, saturation, brightness, contrast, tint, and noise reduction to provide you with the best image possible for any application. Compatible with stereo microscopes and compound microscopes, whether your needs are biological, industrial, gemological, or any other type of microscopy.

Characteristic:
5,000,000 pixel CMOS camera
HD1 uses a new 5 megapixel HD image sensor. The detail is more clearly presented, providing for excellent image quality.
Built- in Mouse Control
The significant innovation of HD1 is embedding the application software inside the camera. The user can control the camera with just a mouse. There is no need for a PC.
Superb Smart Camera
HD1 automatically analyzes the acquired images and optimizes the white balance, exposure time and saturation, to present perfect images. Whatever for bright field bio imaging or dark field birefringent crystal imaging, HD1 delivers ideal images, barely needing any parameter adjustment.
The less Icons the Better
HD1 embedded software is designed for ease of use. There are only two icons on the software starting screen, one for image capture and the other for the settings menu. It¡¯s as intuitive as a smart phone.
Exposure Setting
For the first time, an HDMI camera is equipped with complete exposure and gain settings. It allows to exposure settings from 1ms to up to 10 seconds and 20 levels of gain adjustment. Compared with 1st generation HD camera where only auto exposure was available, the ease of use has been significantly improved and moreover, the sensitivity is 300 times higher.
3D Noise Reduction
An increase of the exposure time increases the image noise. But the integrated 3D noise reduction function keeps the HD1 image always clean and sharp. The following comparison images show the amazing 3D noise reduction effect.
1080P Video Recording
Just click on the button to start recording 1080P videos at 30fps. The recorded video files will be saved to the high speed SD card directly. It is also allows playback the videos in the SD card directly.
Get more Details with ROI Magnification Function
A series of image operation buttons on the right side of the screen allows the image to be flipped, rotated or a Region of Interest (ROI) to be selected. The ROI function can help to get more image details through magnification.
Image Comparison Function
The image comparison function is available in the setting menu. An image can be chosen to compare with the live image and even moved around or have a ROI selected.
The FPGA dual-core processor
HD1 adopts innovative FPGA dual-core processor, FPGA1 high-definition image quality processor and FPGA2 image output controller, to ensure high speed high quality images.


Camera Specifications:
Sensor: Aptina MT9P031 CMOS
Sensor Size: 1/2.5 inch (10mm)
Pixel Size: 2.2µm
Preview Resolution: 1920 x 1080
Still Capture Resolution: 2592 x 1944
Video Capture Resolution: 1920 x 1080
Video Framerate: 15fps SD Card, 15fps USB, 15fps HDMI
Recording Media: SD Card (4G)
Exposure Time: 1/1000 - 10s
Exposure Modes: Automatic, Manual
Settings: Gain, Gamma, Saturation, Contrast
White Balance: Automatic
Interfaces: USB 2.0, HDMI
Built-in Software: Cloud v1.0
Software: ISCapture
Compatible Operating Systems: Win XP/7/8 (32/64bit)
Optical Port: Standard C-mount (aluminum)
Power Supply: DC 12V 2A
Operational Temperatures: 0 - 60¡ãC
Storage Temperature: -20 - 70¡ãC
Humidity Tolerance: 45% - 85%
Dimensions: 74.4mm x 67.2mm x 90.9mm
Weight: 1Kg

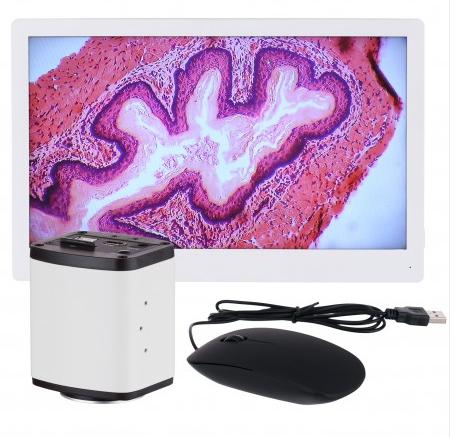

Packing List :
One 1080p C-mount Digital Camera
One SD Card
One USB Mouse
One HDMI Cable
One USB Cable
One AC Adapter
Software
11.5" monitor  ( OPTIONAL )
