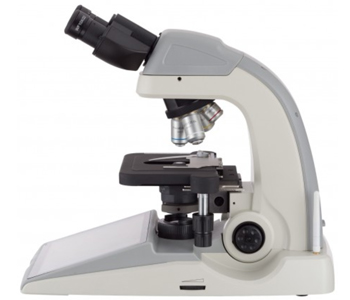

MB570 LCD 16MP Digital Microscope

The MB570 LCD 16MP Digital Microscope is a self-contained microscopy and imaging system with a 9.7in touchscreen interface and 16MP imager. The binocular head features correction-free interpupillary-adjustment, and 30mm (outer diameter) wide-field eyepieces. Four high-quality plan-achromatic objectives (4X, 10X, 40X, 100X) combine with the 10X eyepieces to offer a magnification range from 40X to 1000X.

The built-in digital-imaging system records images up to 16MP, and videos up to 4MP. The integrated computer runs on Windows 10, with a 9.7in touchscreen display and USB mouse. A built-in hard drive offers internal storage, and an integrated SecureDigital drive provides external storage. Both ethernet and wifi provide network access. An HDMI output allows you to connect to an external monitor or television.

Optical System: Infinity-corrected
Objective Lense Type: Plan achromatic

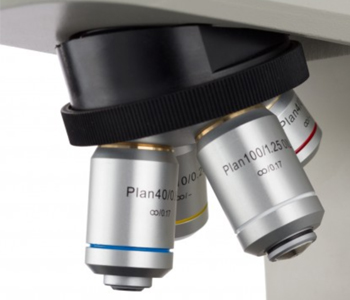

Objective Magnifications: 4X, 10X, 40X (spring), 100X (spring, oil)
Eyepieces: Wide-field 10X FN22
Binocular Interpupillary Distance: 55mm - 75mm
Stage Dimensions: 216mm x 150mm
Stage Travel: 78mm 54mm
Coarse Focus Range: 22mm
Fine Focus Accuracy: 0.002mm
Sub-stage Condenser: Abbe 1.25 NA
Sub-stage Condenser Movement: 25mm
Sub-stage Illumination: 3W variable-intensity LED
Power Input: 100-240VAC

Imaging Specifications:
Internal OS: Windows 10
Display: 9.7in IPS Touchscreen
Display Resolution: 2048 x 1536
Image Sensor: 16MP CMOS
Pixel Size: 1.335m
Image Capture: up to 4608 x 3456
Video Capture: up to 2304 x 1728

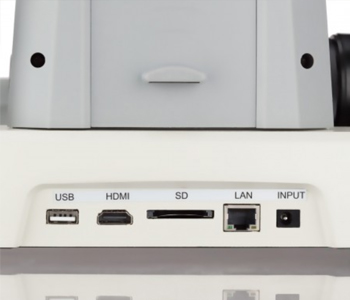

Display Output: HDMI

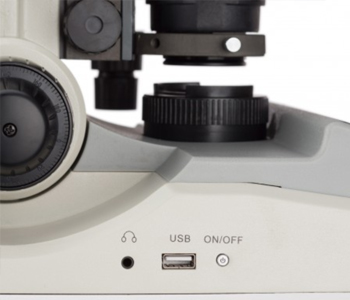

USB Connectivity: 2 USB2.0 ports
Network Interface: GigE LAN, WiFi
Storage: 30GB internal HDD, SecureDigital drive, external USB device
