Accessories >> Objectives
NUV Infinity-Corrected Objectives
Description

These objectives are world-renowned for setting the standard of excellence for long working distance microscope optics.
They have achieved the best combination of working distance and optical performance by using a new approachavoiding outdated conventions used by competitors.
Making the objectives larger and longer has made the designs easier (95mm parfocalization length).
For an infinity corrected system, a secondary (or tube) lens is required.
All stated magnifications are based on a tube lens focal length of 200mm.
Works with all Mitutoyo parts and can be placed directly in a system currently utilizing Mitutoyo objectives.

NAME  N.A. W.D.(mm) f(mm) R(m) p(m) VISUAL FIELD VISUAL FIELD TRANSMITTANCE REMARK
(mm/) (mm/1/2CCD)

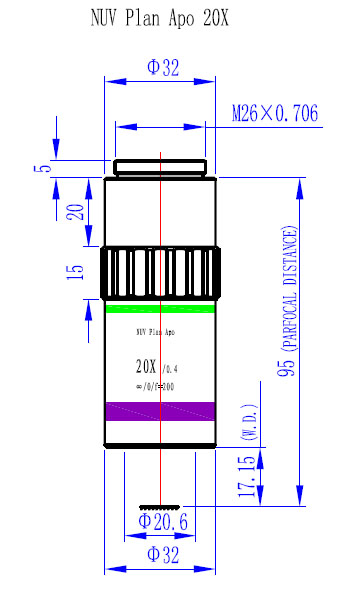

NUV Plan
Apo 20X
0.4 17.15 10 0.69 1.72 1.2 0.240.32 450nm~700nm>70%,
345nm~365nm>90%
Achromatic
Wavelength:355nm

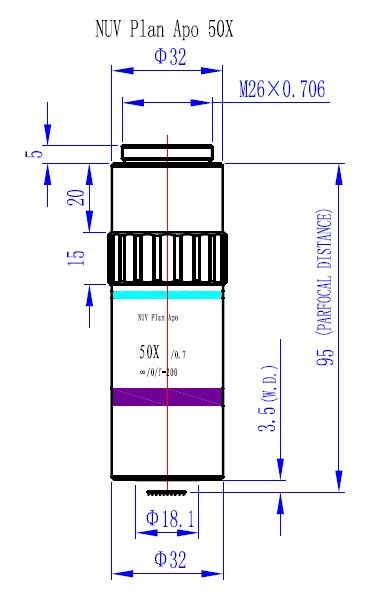

NUV Plan
Apo 50X
0.7 3.5 4 0.39 0.56 0.48 0.100.13 450nm~700nm>70%,
345nm~365nm>90%
Achromatic
Wavelength:355nm

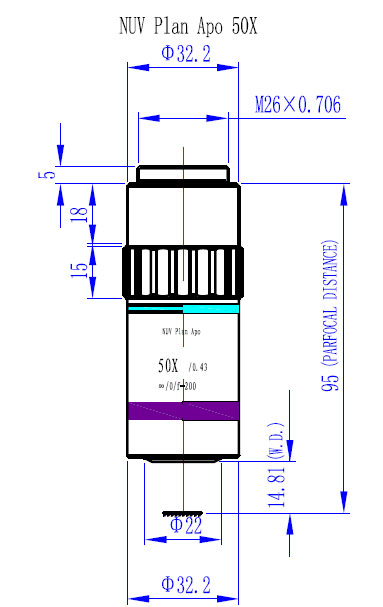

NUV Plan
Apo 50X
0.43 14.81 4 0.64 1.49 0.48 0.100.13 450nm~700nm>70%,
345nm~365nm>90%
Achromatic
Wavelength:355nm
