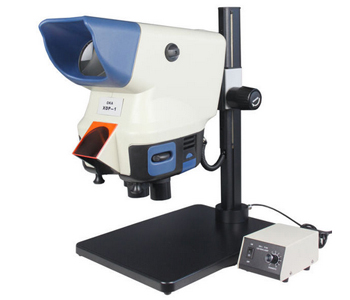

MDP-1B Square base Wide-field Microscope
Description

1, MDP-1B Square base Wide-field Microscope is the new large viewing field microscope. It produces sharp and stereoscopic images. It is to be operated easily and comfortable. Widely applied to biological dissectionelectronicsmineralsrestoration culture relic etc
2, Acquiring the internal patent and the only manufacturer of original creation; designing in combination with visual project.
3, Imaging from optical entity; providing with various objectives of 246810 and 15 magnification. The objectives can be conveniently changed; owning humanistic operating system.
4, In humanized operation, MDP-1B can be intalled 3 objectives, so that change different magnification easily.
5, For the long time viewing without visual weariness, the freely and comfortably operating can be beyond the visual limit, and improve the working efficiency.
6, Possessing the super-long working distance, super-large viewing field and depth of focus, so that the operator hasnt any limited.

SPECIFICATION:
Base Plate Size: 40030020mm (15.7411.810.78 inches)
Vertical arm height: 500mm (19.68 inches)
Travel: 200mm
Outside LED light adjuster

OBJECTIVES:

Magnification

Working distance(mm)

Viewing field for object space(mm)

Equipment

2

208

68

4

98

34

6

80

22.7

8

58

17

10

46

13.6

15

50

9.1

6SL

115

22.7

 is standard equipment. is optional equipment.


Application range
:

1Electronics: PCB Setting, QC, Screening, Rework & Weld

2Precision project & Plastic: QC, Micro-welding, Micro-machining In jecting & Moulding

3Medical & Dentistry Equipment Manufacturing: Finish machining

 Setting, Fine Dressing, Color Matching, Rework & Overhaul

4Biological medicine: Sample-Making, dissecting, Dyeing, Microscopy

5Public Security system
