The high performance Zoom6665 Series stereo microscopes utilize a Greenough design and feature a 1:6.5 zoom ratio, with a 103mm working distance and a large visual Field (23mm). Their parfocality allows an erect Image of the observed specimens to stay in focus through repeated changes In the magnification. Adding to the ergonomics Is a choice of observation angle£¬either 45 0r 60 degrees. The Zoom6665CI zoom stereo Microscopes with built-In coaxial Illumination£¬is the International coaxial illumination Technology, wide voltage. It is particularly suitable for the test of LC maked film£®LCD printing paste, LED roduction£¬PCB board£¬pressing and plating and observation micro-surface In Integrated circuit, metal parts, semiconductor.

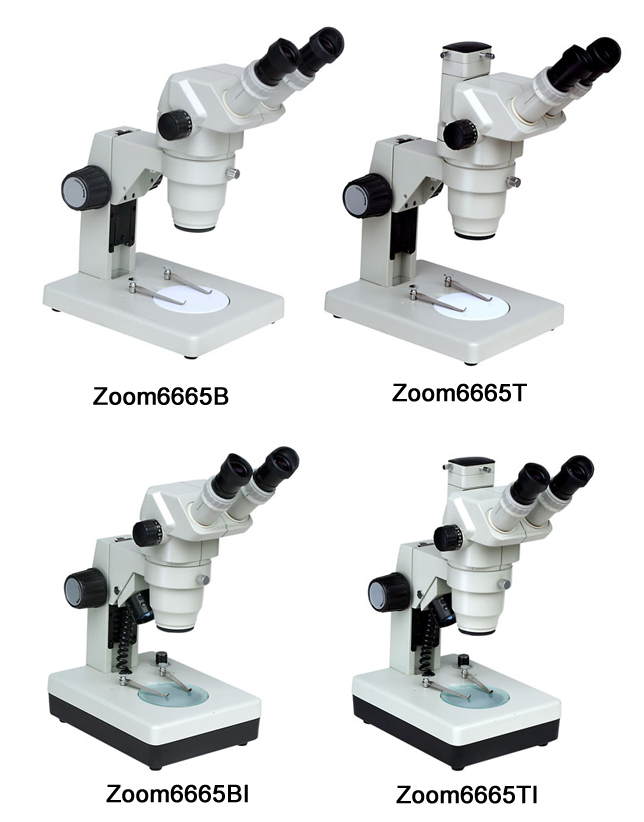

Zoom6665B: Binocular head. Without the light source
Zoom6665T: Trinocular head. Without the light source
Zoom6665BI: Binocular head with the light source of reflection and transmitting illuminator
Zoom6665TI: Trinocular head with the light source of reflection and transmitting illuminator
Standard configurations:
| Zoom ratio |
1:6.5 |
| Objective zoom range |
1X-6.5X |
| Eyepice |
SWF10X/23mm |
| Working distance |
103mm |
| Interpupillary distance adjustment range |
52mm-75mm |
| Binocular Angle of View |
Inclination45/60 |
| Diopter adjustment |
¡À5 diopter |
| Optical Body Rotation |
360 |
Technical data:
|
Project |
Auxiliary Objective |
Eyepiece |
Working distance(mm) |
|
SWF10X |
WFl5X |
WF20X |
WF25X |
|
Magnifi-cation |
Visual field |
Magnifi-cation |
Visual field |
Magnifi-cation |
Visual field |
Magnifi-cationn |
Visual field |
|
Data |
0.5X |
5X-32.5X |
46-7.4 |
7.5X-48.8X |
32-5 |
10X-65X |
26-4 |
12.5X-81.25.3X |
24-..6 |
163 |
|
0.75X |
7.5X- 48.8X |
30.7-4.7 |
11.3X-73.1X |
21.3-3.3 |
15X-97.5 |
7.3-2.7 |
18.8X-121.9X |
16-2.5 |
117 |
|
1X |
10X-65X |
23-3.5 |
15X-97.5X |
16-2.5 |
20X-130X |
13-2 |
25X-162.5X |
12-1.8 |
103 |
|
1.5X |
15X-97.5X |
15.3-2.4 |
22.5X-146X |
10.7-1.6 |
30X-185X |
8.7-1.3 |
37.5X-243.8X |
8-1.2 |
45 |
|
2X |
20X-
130X |
11.5-1.8 |
30X-195X |
8-1.2 |
40X-260X |
6.5-1 |
50X-325X |
6-0.9 |
40 |
|
