Stereo Microscopes >> Zoom Stereo
Zoom6645 Series Zoom Stereo Microscopes
Description

The high performance Zoom6645 Series stereo microscopes utilize a Greenough design and feature a 1:7 zoom ratio with a 103mm working distance and a large visual field. Their parfocality allows an erect image of the observed specimens to stay in focus through repeated changes in the magnification. They feature a guidepost structure, making them lightweight, and a pair of horizontal magnification changing knobs to maximize comfort. Adding to the ergonomics is a choice of observation angle, either 45 or 60 degrees. In addition to performance and comfort, a highlight of the Zoom6645 is their durability. Promoting one of the finest ball bearing guideways in the world, the focusing mechanism is extremely robust.

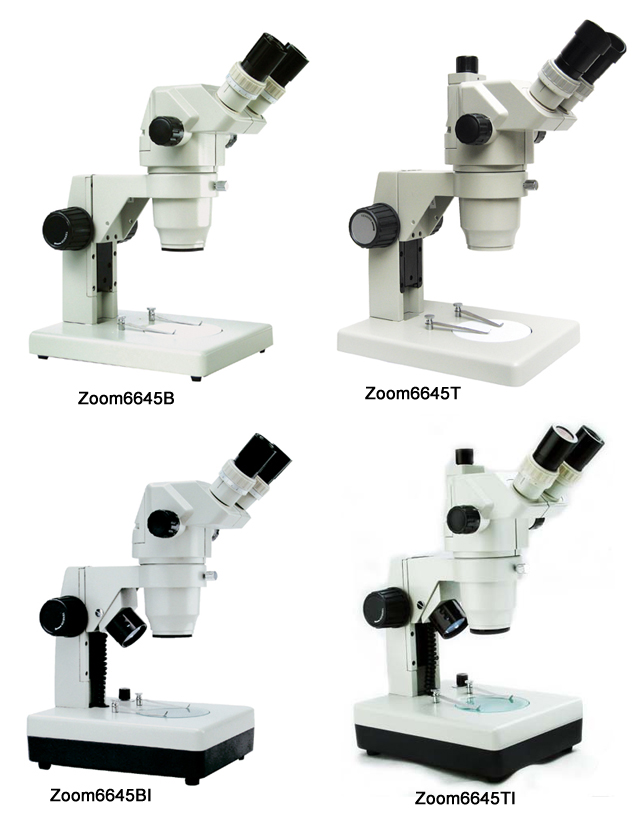

Zoom6645B: Binocular head. Without the light source
Zoom6645T: Trinocular head. Without the light source
Zoom6645BI: Binocular head with the light source of reflection and transmitting illuminator
Zoom6645TI: Trinocular head with the light source of reflection and transmitting illuminator


Standard Configurations:

Zoom ratio 1:7
Objective zoom range  0.65X-4.5X
Eyepice SWF10X/22mm
Working distance 103mm
Interpupillary distance adjustment 55mm-75mm
Binocular head inclination of 45¡£or 60¡£
Diopter adjustment ¡À5 diopter
Optical Body Rotation 360¡£

Technical Data:
Project
Auxiliary Objective
Eyepiece
Working distance(mm)
SWF10X
WFl5X
WF20X
WF25X
Magnifi-cation
Visual field
Magnifi-cation
Visual field
Magnifi-cation
Visual field
Magnifi-cationn
Visual field
Data
0.5X
3.3X-22.5X
67.7-9.8
4.9X-33.8X
49.2-7
6.5X-45X
40-5.8
8.1X-56.3X
37-5.2
163
0.75X
4.9X-33.8X
45.1-6.5
7.3X-50.6X
32.8-4.7
9.75X-67.5
26.6-3.8
12.2X-84.4X
24.6-3.5
117
1X
6.5X-45X
33.8-4.9
9.8X-67.5X
24.6-3.5
13X-90X
20-2.9
16.3X-112.5X
18.5-2.6
103
1.5X
9.8X-67.5X
22.5-3.3
14.6X-101.3
16.4-2.3
19.5X-135X
13.3-1.9
24.4X-168.8X
12.3-1.7
45
2X
13X-99X
16.9-2.5
19.5X-135X
12.3-1.8
266X-180X
10-1.4
32.5X-225X
9.2-1.3
40
