Industrial Metallurgical Micro >> DIC Metallurgical Microscopes

MJ6302 DIC Metallurgical Microscope
Description

MJ6302 DIC differential interference contrast microscope is suitable to observe many different kinds of object. It is equipped with transmitted illuminator and reflected DIC system, infinity plan achromatic objectives with long working distance, wide-field eyepieces and polarizer device. It provides clear and 3D image, beautiful sculpt, convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc.

Features
1,Excellent UIS optical system can obtain excellent optical performance.
2,Compact and steady main frame body is embodiment for the shock resistance.
3,The large-mobile range mechanical stage is adapted to observation big size specimen or quick check.
4,Modularization function design so that update system expediently and achieved polarization,DIC observation.
5,Ideal ergonomic design is adopted in this unit and have easier operation and wider space.

Standard Configuration
Eyepiece
10X Wide-field plan eyepiece£¬field of view number §¶18mm
Objective (Infinity and long working distance plan achromatic objective)
Type
Magnification
Number aperture
Working distance (mm)
Thickness of cover glass (mm)
Remark

Bright Field objective

5X
0.12
26.1
0
MJ6302 DIC
10X
0.25
20.2
0
20X
0.40
8.8
0
40X
0.60
3.98
0
80X
0.80
1.28
0
Eyepiece tube
Inclination of 30˚ and interpupillary distance is 53~75mm
Focusing system
Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 0.8¦Ìm
Nosepiece
Quintuple (Backward ball bearing inner locating)
Stage
Mechanical stage£¬size£º280mmX270mm, moving range: 204mmX204mm
Polarization Unit
Polarizer enable 360¡ãrotate and switched in or out
Analyzer can be switched in or out
Light source
12V50W halogen, brightness enable control
DIC observation system
10XDIC  push-pull group
20XDIC  push-pull group

Optional accessories
name
Sort/Technique parameter
NO.
Eyepiece
Dividing eyepiece(field number:¦µ18mm)   0.10mm / Div
1121010
Objective
Magnification
Number aperture
Working distance (mm)
Remark

50X
0.70
3.68
Bright field
2260150
60X
0.75
1.22
2260160
100X(Dry)
0.85
0.40
2260111
Stage
Mechanical stage, size: 250mmX230mm, moving range:154mmX154mm
040018
CCD adapter
0.5X
812004
1X
812002
0.5X with dividing 0.1mm/Div
812003
Camera
DV-1(with USB and Video output )
800001
DV-2(with USB output )
800003
DV-3(with Video output )
800005
Digital Camera Adapter
CANON(EF)  NIKON( F)
820001

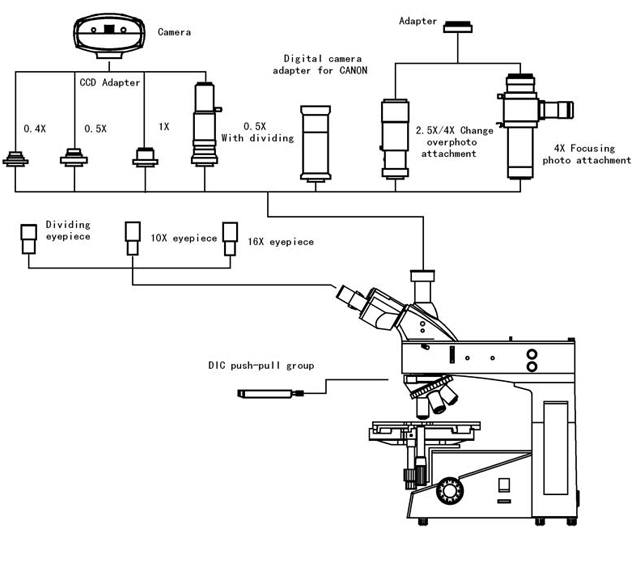

SYSTEM DIAGRAM

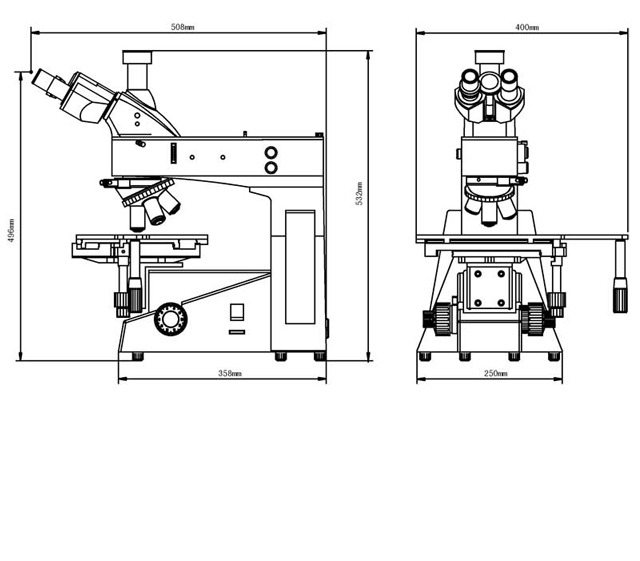

DIMENSION:
