MJ6408 series inverted metallurgical microscopes
Description

 MJ6408/MJ6408BD Inverted metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.

Standard Configuration

Specification
Eyepiece
Wide field WF10X(field number:¦µ22mm)
Objective
MJ6408
Equipped with bright field objectives
PL L10X/0.25  (Work distance)£º20.2 mm
PL L20X/0.40  (Work distance)£º8.80 mm
PL L50X/0.70  (Work distance)£º3.68 mm
PL L100X/0.85 Dry  (Work distance)£º0.40 mm
MJ6408BD
Equipped with bright & dark field objectives
PL L5X/0.12 BD  (Work distance)£º9.70 mm
PL L10X/0.25 BD  (Work distance)£º9.30 mm
PL L20X/0.40 BD (Work distance)£º7.23mm
PL L50X/0.70 BD  (Work distance)£º2.50 mm
Eyepiece tube
Inclination angle is 45˚ and interpupillary distance is 53~75mm.
Focus system
Coaxial coarse/fine focus, with tension adjustable£¬minimum division of fine focusing is 2¦Ìm.
Nosepiece
Quintuple (Backward ball bearing inner locating)
Stage
Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm.
Rotundity and rotatable stage size: maximal measurement is §¶130mm and minimal clear aperture is less then §¶12mm.
Illumination system
6V30W halogen and brightness enable control., use in MJ6408
12V50W halogen and brightness enable control., use in MJ6408BD
Integrated field diaphragm , aperture diaphragm and puller type polarizer.
Equipped with frosted glass and yellow ,green and blue filters

Optional accessories

Name
Sort/Technique parameter
NO.
Eyepiece
Dividing eyepiece(¦µ22mm)
1122010
Objective
PL L5X/0.12  (Work distance)£º26.1 mm
Equipped with bright field objectives
2260105
PL L40X/0.60  (Work distance)£º3.98 mm
2260140
PL L60X/0.70  (Work distance)£º3.18mm
2260360
PL L80X/0.80  (Work distance)£º1.28 mm
2260180
PL L40X/0.60 BD  (Work distance)£º3.00 mm
Equipped with bright & dark field objectives
2120140
PL L60X/0.75 BD  (Work distance)£º1.90 mm
2120160
PL L80X/0.80 BD   (Work distance)£º0.80mm
2120180
PL L100X/0.85 BD  (Work distance)£º0.4 mm
2120111
CCD Adapter
0.5X
812004
1X
812002
0.5X with dividing 0.1mm/Div
812003
Camera
DV-1 Video output 380/520 TV line USB output 0.42 M pixel
800001
DV-2 With USB output 1.3M,2.0M,3.0M pixel
800003
DV-3 With video output 380/520 TV line
800005
Digital camera adapter
CANON(EF)  NIKON( F)
820001

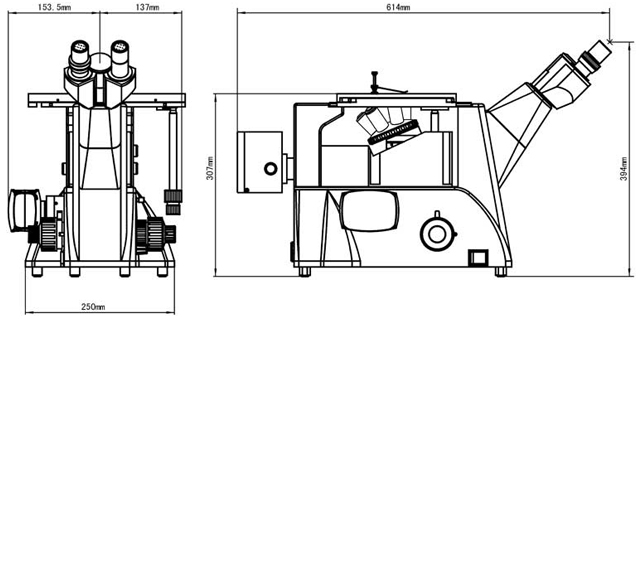

Dimension:
