7" Pad Digital Camera for Microscope
Description

This 7" Pad Digital Camera for Microscope is a revolutionary product in microscope area which combines of tablet PC and a digital camera, it can preview, take snaps, videos and save them, wireless transmission, 3G internet surfing. It has a C-mount connecter which can be connected to any microscopes with microscope adaptors. It is an Ideal instrument of industrial optical inspection, teaching and scientific research.

Features
¡ñ Specially designed and optimized for all-in-one. Microscope with LCD pad for preview, capture photo and video, storage, playback, wireless data network,etc.
¡ñ High quality images, ture dolors as same as CCD cameras.
¡ñ Easy to install, come with international standard C-mount connector, it can be installed on monocular, binocular, trinocular, stereo, dissectiong and various kinds of microscopes and
telescopes with optional eyepiece adaptor.
¡ñ Wide view angle, adjustable 90¡ã inclined
¡ñ Abundant data output, convenient for transmission. Come with Mini USB, tf Card Slot, External 3G, HDMI interface, headphone slot,microphone and power supply
slot.
¡ñ Built-in Android 2.3 operating system, complete application functuions. Users can download any of the tens of thousands of Android application software from
the official Android Market and other websites. High quality entertainment( picture, movies, music, reading and games) is just a finger swipe away.
¡ñ 7" LED Backlight HD LCD screen. 5 points multi-touch screen,gravity sensor.
¡ñ Power full web functions,keep you connected with friends,friends, family and clients. Wireless WIFI transfer and optional 3G internet access allows users to be connected
to internet, share the information via email,MSN, Forum,Blog, access online services any time wherever you go.
¡ñ Aluminum C-mount connector, solid and reliable conncetion.



Specification:

Digital Parts
5 MegaPixels, 1/2.5" CMOS Sensor, 2592x1936
Image-previewing Rate:30 fps at full resolution
Connection: C-mount or Ocular tube adaptor
Display
7" LED Backlight TFT LCD screen(1024*600)
G-sensor, multi-point capacitance touch screen
Operating System
Android 2.3
CPU
1GHZ
RAW
512MB DRAM
Storage Device
4G Nand Support external TF card, maximun capacity od 32GB
Application Software
Browser/Reset/Task/Calculator/Camera/Calendar/Clock/Dairy/Emails/Books/E-book/Muscic/Games/MSN/Skype/Gmail ect.
System software support various android, download with android market
Buttons
Top Button: Turn on/off, Volume+, Volume -, Reset
Front Main Button: return, home, menu, search
Battery
Capacity: 4500mAh, rechageable LI-polymer battery
Wi-Fi
Support wireless data network, wireless lan 802.11b/g
3G Net Work
Blue toothe V2.1+EDR
Interface
Mini USB 2.0, HDMI, Micro-SD card slot(up tp 32GB), 3.5mm stereo headphone slot
Audio
2 pcs Built-in class-D digital power amplifier loudspeaker, built-in microphone
Media File
Photo file formats support: JPG£¬GIF£¬BMP£¬PNG
Video File formats support:MPEG-2 Main-High¡¢H.264 BP/MP/HP¡¢VC1 SP/MP/AP¡¢RV10 8/9/10¡¢MPEG-4/Xvid SP/ASP¡¢DivX 3/4/5/6¡¢H.263 P0/P3¡¢ MJPEG Encode£ºH.264 BP¡¢H.263 P0/P3¡¢MPEG-4 SP¡¢MPEG-2 Main-Main¡¢MJPEG¡¢3D formal format.
Language
Multi language(T-Chinses, S-Chinese and English etc.)
Adapter
DC5V 2000mA, plug tupe optional: USA,EU,UK and etc
Accessories
Power adapter, input: DC100-240V, USB cable, USB cable (short) ,user manual
Operating Temperature
0¡ãto40¡ã
Optional Accessories

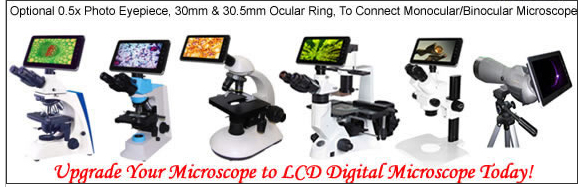

Eyepiece Adapter
0.5x Photo Eyepiece, 30mm & 30.5mm Ocular Ring
