Microscopy Cameras >> HDMI Cameras

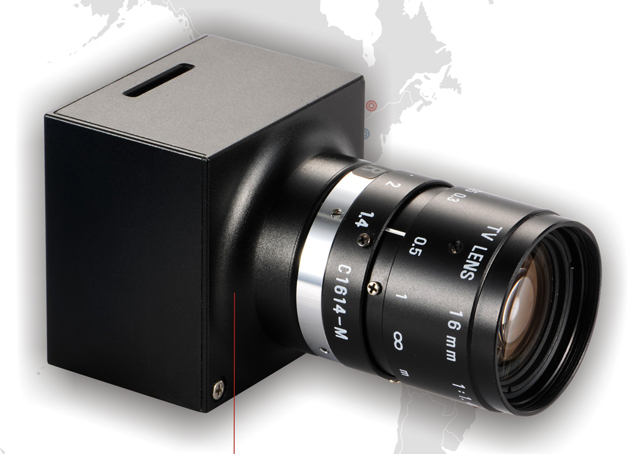

HDMI Multi-model Microscope Camera
Description

The Smallest, but most powerful New Digital Camera in 2012!
The HDMI Multi-Mode microscope camera, size only 4x4x4.5cm, is a 1080p/720p HD scientific grade image processing project that has ultra superior color reproduction and super fast frame speed. Its functions can be independent utilized.

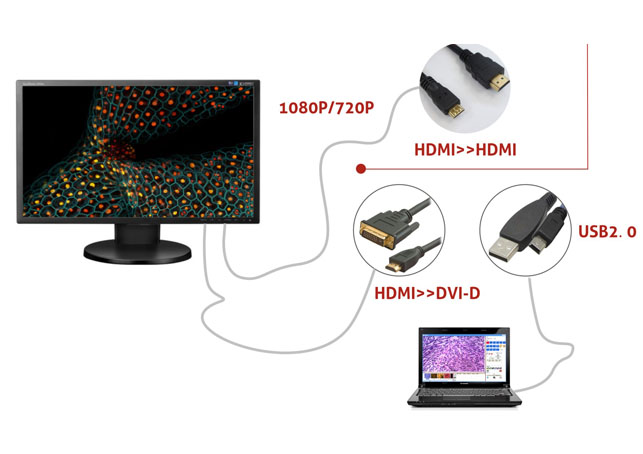

This camera can be operated on HDMI screen independently or process image via build in Mini SD without connecting with PC. The fast change responding speed and short responding time of the optical signal adopted by this HDMI camera which has been used in many areas like optical image processing fields.

Specifcation:

Image Senser
CMOS, Color, Progressive scan
Optical Format
1/2.5-inch(4:3)
Active Image Siza
5.70mm(H)x4.28m(V)
Active Pixels
2592Hx1944V
Pixel Size
2..2x2.2¦Ìm
Shutter Type
Global reset release(GRR), snapshot only, electronic rolling shuttrt(ERS)
Color Filter Array
RGB bayer pattern
ADC Resolution
12-bit
SNRMAZ
38.1db
Pixel Dynamic Range
70.1db
Operating Temperature
-30¡ãC to +50¡ãC
Photo Resolution
2592x1944/1920x1080/1280x720. Selectable resolutions for capturing images
Video Size
720P/30fps
Exposure Setting
Automatic/manual
White Balance Setting
Automatic/manual/Preset:3 modes for the color temperature of light scource, one-press button control AWB
Dta Interface
HDMI/USB2.0/Mini SD 4G included
Control Interface Plastic button control
Lens Mount
Adjuctable C-mount standard
Operating Systems
Windows XP/Vista/ Win7(32 and 64-bit) under USB2.0 mode
Measuring Software
VMS3.5, Multi languages
Power Supply 5V DC/2A


Black Color
