Stereo Microscopes >> Parallel Optical Stereo

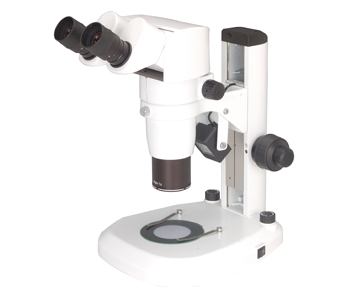

Zoom1060 Parallel optical system zoom stereo microscope with Tilting Binocular Head, 0°-35° Inclination

Description

1, Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.

2, Comfortable Operation with Ergonomic Design Principle.

3, With LED light for both incident and transmitted illumination, Providing even illumination

and life expectancy can reach 6000 hours.

4, A Wide Range of Accessories to be Equipped with the Microscope for Multi-purposeIt is

an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Specification:

Drawing Tube	Binocular Head, 20°Inclination
	Tilting Binocular Head, 0°-35° Inclination	●
	Photo Attachment(one photo tube)
	Photo Attachment(two photo tube)	○
Eyepiece	EW10×/22	●
	WF15×/16	○
	WF20×/12	○
Zoom Objective	0.8×-5×
	0.8×-6.4×
	0.8×-8×	●
Objective	Plan Achromatic Objective 1×	●
	Plan Apochromatic Objective 0.5×	○
	Plan Achromatic Objective 2×	○
	Achromatic Objective 0.3×
Zoom Ratio

	1:10	●
Working Distance	78mm	●
Focusing	Focusing Range 105mm	●
Illumination	Transmission or Reflection LED Illumination, Brightness Adjustable	●
Illumination	Coaxial Illumination	○
Fluorescent Attachment		○
Dark Field Attachment		○
Photo/ Video Attachment		○
Simple Polarization Set		○
Iris Diaphragm		○
Mechanical Stage		○
Temperature Stage		○
Universal Table Stand		○
D Stand		○
Coaxial Coarse & Fine Focusing Unit		●
Note: ● Standard Outfit, ○ Optional
