Excellent fluorescent image with high resolution fluorescent objectives |
| ¡¤ |
Protect the light leak with advanced lamp housing |
| ¡¤ |
Excellent Optical Function with Infinitive Optical System |
| ¡¤ |
Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Incubating Cell Tissue |
| ¡¤ |
Widely used in venereal disease examination and immuneless diagnosis |
|
MF406Y |
| Optical System |
Infinite Optical System |
¡ñ |
| Viewing Head |
Trinocular Head Inclined at 30¡ã, Interpupillary 48-75mm |
¡ñ |
| Eyepiece |
High-point, Extra Wide Field Eyepiece EW10¡Á/ 22 |
¡ñ |
| Nosepiece |
Quintuple Nosepiece |
¡ñ |
| Objective |
LWD Infinite Plan Objective |
4¡Á/0.1, WD 18mm |
¡ñ |
| 10¡Á/0.25, WD 10mm |
¡ð |
| 20¡Á/0.4, WD 5.1mm |
¡ð |
| 40¡Á/0.6, WD 2.6mm |
¡ñ |
|
Infinite Plan Phase Objective |
PH 10¡Á/0.25, WD 10mm |
¡ñ |
| PH 20¡Á/0.4, WD 5.1mm |
¡ñ |
| PH 40¡Á/0.6, WD 0.35mm |
¡ð |
|
Infinite Plan Fluorescent Objective |
4¡Á/0.13, WD 16.3mm |
¡ð |
| 10¡Á/0.3, WD 12.4mm |
¡ð |
| 20¡Á/0.4, WD 1.5mm |
¡ð |
| 40¡Á/0.6, WD 2.2mm |
¡ð |
| Condenser |
ELWD Condenser NA 0.3, LWD 72mm |
¡ñ |
| Focusing |
Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation |
¡ñ |
| Stage |
Plain stage 160¡Á250 mm |
¡ñ |
| Glass Insert |
¡ñ |
| Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120¡Á78 mm |
¡ð |
| Auxiliary Stages70¡Á180mm |
¡ñ |
| Terasaki Holder |
¡ð |
| §æ38mm Petri Dish Holder |
¡ð |
| §æ54mm Slide Glass Holder |
¡ð |
| Illumination |
Halogen Lamp6V/ 30W |
¡ñ |
| Filter |
Blue/ Green and Ground Glass (§æ45mm) |
¡ñ |
| Phase Annulus |
¡¡ |
¡ñ |
| Centering telescope(§æ30) |
¡¡ |
¡ð |
| Photo Attachment |
¡¡ |
¡ð |
| Video Adapter |
Video Adapter with C Mount |
¡ð |
| Reflected Light Source |
|
Excitation |
Dichroic Mirror |
Barrier Filter |
¡¡ |
| Blue excitation |
BP460¡«490 |
DM500 |
BA520 |
¡ñ |
| Blue excitation (B1) |
BP460¡«495 |
DM505 |
BA510-550 |
¡ð |
| Green excitation |
BP480¡«550 |
DM570 |
BA590 |
¡ñ |
| Ultraviolet excitation |
BP330¡«385 |
DM400 |
BA420 |
¡ð |
| Violet excitation |
BP400¡«410 |
DM455 |
BA455 |
¡ð |
| Lamp |
100W HBO Ultra Hi-voltage Spherical Mercury Lamp |
¡ñ |
| Protection barrier |
Barrier to Resist the Ultraviolet Light |
¡ñ |
| Power Supplier |
Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display |
¡ñ |
| Immersion Oil |
Fluorescent Free Oil |
¡ñ |
| Neutral ND25/ ND6 Filter |
¡¡ |
¡ð |
| Centering Plate |
¡¡ |
¡ñ |
|
Note: ¡ñ Standard Outfit, ¡ð Optional |

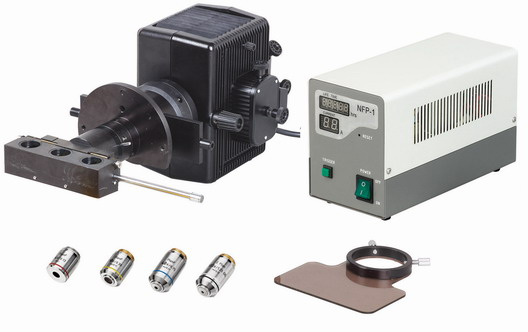

| MF406Y Inverted Fluorescent Attachment : |

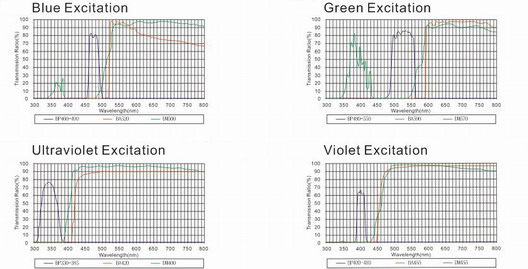

Characteristics of Mirror Units Wavelength :
More stable power supply, digital display and timer
|
