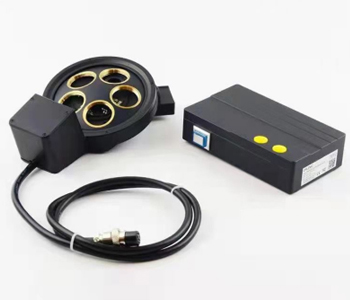

Motorized and Manual Nosepieces
Time:2024-4-1 20:44:32    Click:540


BW OPTICS’s wide variety of motorized and manual objective nosepiece assemblies can be integrated into new or existing custom optical systems. BW OPTICS’s current portfolio of objective nosepieces range from a single objective fixed magnification for OEM applications, to a six position motorized nosepiece for automated scanning applications requiring multiple objectives.

1, Service life: greater than or equal to 800,000 times

2, Provide SDK integrated development kit

3, Free technical support



Specifications



Single screw hole multiple bidirectional positioning accuracy

<0.003mm

Multi-screw positioning axis coincidence accuracy

<0.01mm

Height difference after conversion of each screw hole end face

<0.005mm

Objective lens mounting thread selection

M32/M26/M25/RMS

Number of objective lens holes:

6 holes / 5 holes / 4 holes
